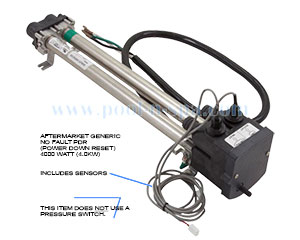

Hydro-Quip 26-C3160-2S Heater, 4.0KW, No Fault PDR, IQ2020, Sensors

The Hydro Quip 26-C3160-2S heater assembly is the generic version of the Watkins no fault heater.

This generic replacement can replace heaters in various Watkins, Hot Spring, Tiger River, Hot Spot, Limelight and Caldera hot tub models, as well as a repalcement for some Laing Tri-bend heaters.

The inlet and outlet ports on this heater fit 3/4" tubing.

ATTENTION: This heater comes with sensors that have cable connectors for 2002+ hot tub models.
These sensors plug directly into the circuit board not the side of the box.
These sensors are the new style.
One connector has 4-pins and the other connector has 2-pins.

ATTENTION: This heater does not use a pressure switch (no flow switch).
If your OEM heater has a pressure switch then you probably need the Watkins 76228 heater instead.

The Hydro-Quip 26-C3160-2S low-flow heater assembly has the following features and specifications.

Series: No Fault PDR, IQ2020, Sensors, Aftermarket (but not limited to, unless specified otherwise above).
Kilowatt Rating: 4.0KW
Temperature Sensor Included: Yes
Hi-Limit Sensor Included: Yes
