Balboa 58140 Heater, 5.5KW, M7, LE, VALUE

Balboa 58140 Heater, 5.5KW, M7, LE, VALUE
Balboa 58140 Heater, 5.5KW, M7, LE, VALUE
Balboa 58140 Heater, 5.5KW, M7, LE, VALUE

  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 58140


Call for Price

Item Number: 20-46-7043

  • Description
  • Details
  • Reviews

This heater assembly has been replaced by the heaters shown below in RELATED PRODUCTS.

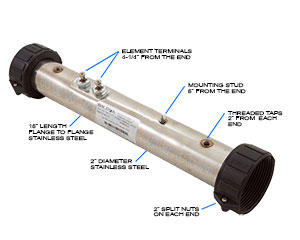

The Balboa 58140 flo-thru heater assembly has the following features and specifications.

Additional Balboa Part Numbers: B58140, BAL58140
Series: M7, LE, VALUE (but not limited to, unless specified otherwise above).
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Stainless Steel Grade: 825 Incoloy
Heating Element Included: Yes
Kilowatt Rating: 5.5KW / 1.375KW
Voltage Rating: 240V / 120V
Mounting Studs: Yes
Number of Mounting Studs: 2
Temperature Sensor Included: No
Hi-Limit Sensor Included: No
Number of Threaded Taps: 2
Threaded Tap Location(s): Sensor taps approximately 2" from leading end and 13" from leading end @ 12 O'Clock.
Split Nuts Included: Yes

Control System Cross Reference
This hot tub heater works with the following control box part numbers (serial numbers) (but not limited to, unless specified otherwise above).
54309, 54311, 54315, 54315-01, 54315-02, 54315-03, 54315-05, 55027, 55027-01, 55027-02, 55027-03, 55029, 55029-01, 55029-02, 55029-03, 55029-04, 55263-02, 55265-02, 55823-02

Control box system not included.

  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 58140
  • Item Number: 20-46-7043
