Balboa 58109 Heater, 4.0KW, M7, LE, VALUE

Balboa 58109 Heater, 4.0KW, M7, LE, VALUE
Balboa 58109 Heater, 4.0KW, M7, LE, VALUE

  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 58109

$166.29



Item Number: 20-46-4020

  • Description
  • Details
  • Reviews

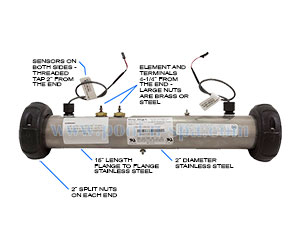

The Balboa 58109 flo-thru heater assembly has the following features and specifications.

Additional Balboa Part Numbers: B58109, BAL58109
Series: M7, LE, VALUE (but not limited to, unless specified otherwise above).
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Stainless Steel Grade: 825 Incoloy
Heating Element Included: Yes
Kilowatt Rating: 4.0KW / 1.0KW
Voltage Rating: 240V / 120V
Mounting Studs: Yes
Number of Mounting Studs: 2
Temperature Sensor Included: Yes
Hi-Limit Sensor Included: Yes
Split Nuts Included: Yes

Control System Cross Reference
This hot tub heater works with the following control box part numbers (serial numbers) (but not limited to, unless specified otherwise above).
53352, 53352-01, 53352-02, 53408, 53408-01, 53408-02, 54340, 54348, 55014, 55014-01

Control box system not included.


The Balboa 58109 heater can be replaced by the heaters shown below in RELATED PRODUCTS


  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 58109
  • Item Number: 20-46-4020


Be the first to write a review.  Write a Review.
