Hot Tub Heaters


Balboa 58104 Heater, 4.0KW, M7, M3, VS, EL2000

Balboa 58104 Heater, 4.0KW, M7, M3, VS, EL2000
Balboa 58104 Heater, 4.0KW, M7, M3, VS, EL2000

  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 58104


Call for Price

Item Number: 20-46-4077

  • Description
  • Details
  • Reviews

This heater assembly has been replaced by the heaters shown below in RELATED PRODUCTS.

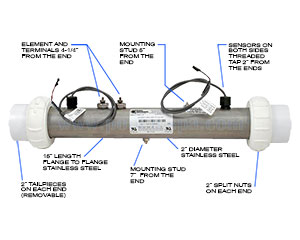

The Balboa 58104 flo-thru heater assembly has the following features and specifications.

Additional Balboa Part Numbers: B58104, BAL58104
Series: M7, M3, VS, EL2000 (but not limited to, unless specified otherwise above).
Manifold Length: 15"
Manifold Diameter: 2"
Stainless Steel: Yes
Stainless Steel Grade: 800 Incoloy
Heating Element Included: Yes
Kilowatt Rating: 4.0KW / 1.0KW
Voltage Rating: 240V / 120V
Mounting Studs: Yes
Number of Mounting Studs: 2
Temperature Sensor Included: Yes
Hi-Limit Sensor Included: Yes
Gaskets Included: Yes
Split Nuts Included: Yes
Tail Pieces Included: Yes (removable)
Tail Piece Size: 2" x 2" (removable)


Control System Cross Reference
This hot tub heater works with the following control box part numbers (serial numbers) (but not limited to, unless specified otherwise above).
53433, 53433-01, 53728, 53729, 53748, 53748-01, 53748-02, 53750, 53794, 53794-01, 53794-02, 53794-03, 53794-04, 54256, 54256-HC, 54358, 54364, 54370, 54370-01, 54370-02, 54370-03, 54379, 54379-01, 54379-02, 54379-03, 54394-01, 54394-02, 54394-03, 54394-04, 54394-05, 54491-03, 54491-04, 54559, 54559-01, 54559-02, 54626, 54626-01, 54647, 54647-01, 54668, 54669, 54757, 55002-01, 55002-02, 55002-03, 55002-04, 55012-01, 55012-02, 55053, 55053-01, 55053-02, 55053-03, 55098, 55098-01, 55139, 55141, 55229, 55230, 55255, 55261, 55340, 55347, 55362, 55363-01, 55363-02, 55370, 55370-01, 55419, 55419-01, 55419-02, 55506, 55508, 55508-01, 55515-02, 55515-03, 55515-04, 55517, 55543, 55543-01, 55564, 55578, 55584, 55663, 55848-01, 55872, 55885, 55885-01, 55887, 55887-01, 55887-02, 55887-03, 55887-04, 55900, 55940, 55946, 55991, 56058, 56065, 56096, 56096-01, 56121, 56135, 56164, 56201, 56224, 56256, 56259, 56278, 56286, 56286-01, 56292

Control box system not included.

  • Manufactured by: Balboa Water Group, Inc.
  • Part Number: 58104
  • Item Number: 20-46-4077
