Balboa 52848 Circuit Board BF01R1(x) Alt Replacement, Bullfrog Spas

Please read entire page before placing an order.

Cross Reference Verification

Step 1 of 2:
Tip: Locate the serial number on the old circuit board being replaced.
Tip: The serial number is on a sticker on the old circuit board (not the box).
Tip: The serial number is shown on the sticker preceded by S/N or P/N (part number).

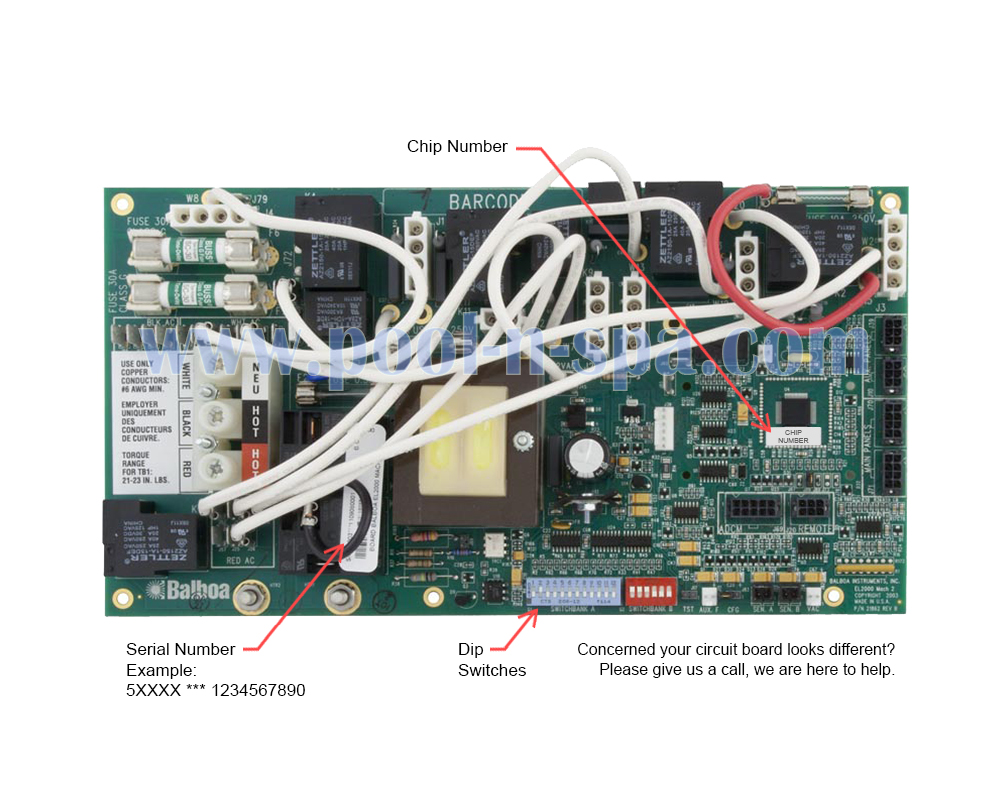

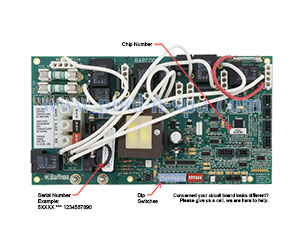

Tip: The image above shows an example of a serial number sticker (click image to enlarge it).

Verify the serial number on the old circuit board being replaced is in this list.

Serial Numbers:

• 52848
• BAL52848

Step 2 of 2:
Tip: Locate the chip number on the circuit board you are replacing.
Tip: The whole chip number is on a sticker located on the circuit board (not the box).
Tip: This is a different sticker than the serial number sticker.
Tip: The chip number sticker usually has two lines of text and the top line is the whole chip number (the bottom line is not needed).
Tip: See image above for an example of a chip number sticker and where they're typically found on the circuit board (click the image to enlarge it).

Verify the chip number on the circuit board being replaced placed is in this list.

Chip Numbers:

• BF01R1A
• BF01R1B
• BF01R1C
• BF01R1D
• BF01R1E
• BF01R1F

Additional Cross Ref., Compatibility & Installation

ATTENTION: This alternate replacement circuit board can only be mounted in a metal control box.

System Control Box Serial Numbers

Tip: The system control box is usually located below the hot tub and the circuit board mounts inside of it.

Please note: System control box serial numbers cannot identify a circuit board.
Please note: Do not use this section for confirmation of making the correct purchase.

The Balboa 52848 BF01R1(x) circuit board can be found in the following hot tub system control boxes (but not limited to).

System Control Box Serial Numbers:

• 52847
• 52847-01
• 52847-02
• 52847-03
• 52847-04

Tip: When replacing a hot tub circuit board, testing the heater and replacing it (if bad), is recommended before installing or applying voltage on a new circuit board.
Note: A continuity test is not a sufficient heater test. Contact us by phone for more details on testing a heater.
See RELATED PRODUCTS below for heater replacements.

Tip: Burned circuit boards or burned heater relays are often due to a loose electrical connection or a bad heater or both.
If all connections are tight and if the heater is good then the heater relays are probably old and worn out.
If a burned relay was powering a pump and all electrical connections are tight then the relay is probably old and worn out or the pump might be bad or going bad or all three.
Replacing the heater and/or pump with a new one is recommended if any of those scenarios apply.

Tip: Items shown in RELATED PRODUCTS below have also been found in hot tub systems with Balboa 52848 BF01R1(x) circuit boards.

Unsure of what something on this page means?

Please contact us so we can better assist you.
